As a trusted crane manufacturer and supplier from china, we offer a powerful material handling equipment for various industries. Featuring a mast constructed from pipes or steel rolled sections, the jib cranes have cover plates or fabricated girders to offer a powerful performance. With mild steel Gusset plate/thick base plate fabrication, the jib cranes have enhanced rigidity in their structure.

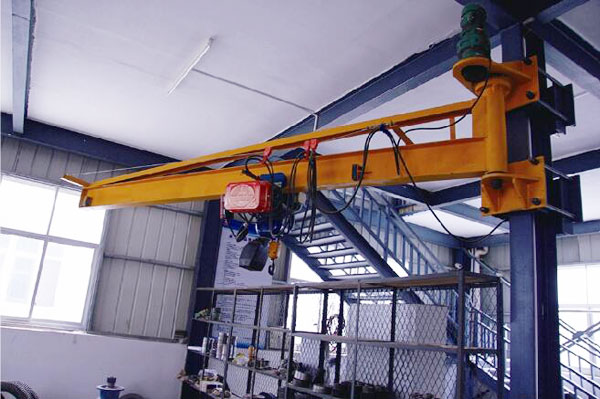

This is one type of wall mounted swing jib crane, easy to install and easy to control. It is widely used in workshop. If there is column adopted in the working area, and the working radium could reach the column, the user could choose our BZQ model jib crane to save your cost, this kind crane’s top advantages as follows:
  • No need the swing column again as BZ column swing lever jib crane, it could be mounted on the column which exist in the workshop and make it as the swing column, and it could save your cost.
  • This kind of jib crane does not occupy the ground area and has the simple frame.

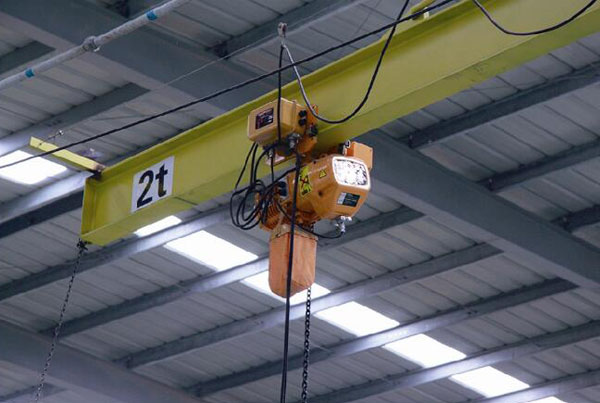

wall crane lift capacity

Capacity/Lifting weight    T 0.125 0.25 0.5 1
Type BXQ0.125 BXQ0.25 BXQ0.5 BXQ1
Rotate mode Electricity/Manual
Lifting speed Electricity 8/2    4/1, 10/2.5 5/1.25, 10/2.5 5/1.25, 8/2
m/min 8/2 4/1, 10/2.5 5/1.25, 10/2.5 5/1.25, 8/2
Maximum swing radius m 3/4/5/6 3/4/5/6 3/4/5/6 3/4/5/6
Maximum working radius m L200mm
Minimum working radius m 1 1 1 1
Lifting height m 3 3 3 3
Travelling speed m/min 7/14/28
Motor capacity Up-down motor 0.2/0.05 0.2/0.05, 0.5/0.13 0.5/0.13, 1.0/0.25 1.0/0.25, 1.5/0.35
Rotation motor 0.37 0.37 0.37/0.55 0.37/0.56
Driving motor 0.14 0.14 0.14 0.2
Rotating speed R/min 0.8
