Electric Hoist

There are some principles on choosing proper electric hoist. What kind of parameters should be provided beforehand? How is the working conditions? How about the maximum safety lifting load? What is the lifting height? What is the speed? If the load needs careful handle or not? What are the special requirements for the horizontal movement? Generally, the type of the hoist is determined by the payload type, the average working time per day and the load weight. TICO supplies various kinds of electric hoist as per your requirements.

YHⅡ Metallurgy Electric Hoist

Main specifications:

• This type metallurgical electric hoist mainly used to lift molten metal.
• Lifting capacity is no more than 10t, lifting height is less than 20m, work environment temperature -20~60℃
• Many kinds of protections. With double brakes, double limits, thermal baffle felt etc.

Apart from YHⅡ Metallurgy Electric Hoist, there are also other types:

Model YHⅡ 2-5t (H=9-20m)
Model YHⅡ Stationary 2-5t (H=9-20m)
Model YHⅡ 10t (H=9-20m)
Model YHⅡ Stationary 10t (H=9-20m)

CD1 MD1 TYPE ELECTRIC HOIST

CD1, MD1 Type Wire Rope Electric Hoist is a small-sized lifting equipment, which can be mounted on bridge crane, single beam, gantry and Jib cranes. It is widely used in factories, mines, harbors, warehouses, cargo storage areas and shops, essential in raising working efficiency and improving working conditions. With tiny modification, it can also be used as a winch.

Difference between CD1 Electric Hoist and MD1 Electric Hoist

Model CD1 Electric Hoist has only one normal speed, which can satisfy normal application. While Model MD1 Electric Hoist provides two speeds: normal speed and low speed. At a low speed, it can do precise loading and unloading, mounding of sand box, maintenance of machine tools, etc. Thus Model MD1 Electric Hoists is more widely used than Model CD1.
TICO also manufactures HC16t, HC20t, HC32t, SHC40t, SHC50t, SHC63t Electric hoists in order to meet the needs of lifting heavier cargo.

Other types:

Model CD1/MD1 0.25-5t (H=6-9m)
Model CD1/MD1 Stationary
Model CD1/MD1 10t (H=9-30m)
Model CD1/MD1 Stationary 10t (H=9-30m)
Model CD1/MD1 16t(H=9-30m)
Model CD1/MD1 Stationary 16t (H=9-30m)

So you can choose the most suitable electric hoist of different types according to your special requirements. TICO has most of the lifting capacity for you.

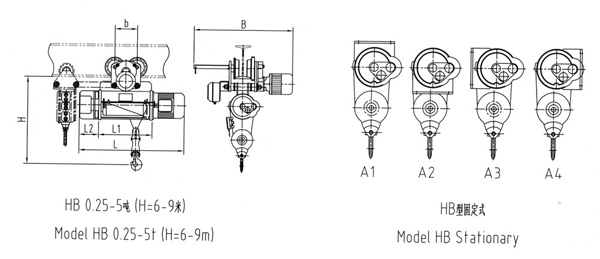

HB MODEL EXPLORE-PROOF STEEL WIRE ROPE ELECTRIC HOIST

Brief introduction of HB model explore-proof steel wire rope electric hoist:

• For Series of HB Explosion-proof electric hoists, the mechanical structure is same with common CD, HC electric hoists.
• For each of the Explosion-proof sign is ExdllBT4, ExdllCT4, DIPA21TA, and ExdⅠMb.
• Working class M3.
• work environment temperature -20~40℃.

Other types:

Model HB 0. 5-5t (H=12-30m)
Model HB Stationary 0. 5-5t (H=12-30m)
Model HB 10t (H=9-30m)
Model HB Stationary 10t (H=9-30m)
Model HB 16t (H=9-30m)
Model HB Stationary 16t (H=9-30m)
Model HB 16t (H=12-48m)
Model HB Stationary 16t (H=12-48m)
Model HBⅡ 16t (H=9-36m)
Model HBⅡ Stationary 16t (H=9-36m)
Model HBⅡ 20t (H=9-30m)
Model HBⅡ Stationary 20t (H=9-30m)
Model HB 32t (H=9-24m)
Model HB Stationary 32t (H=9-24m)

NH ELECTRIC LOW HEADROOM HOIST

NH type electric hoist is innovation, it breaks the traditional CD hoist design thinking. With modular design scheme as the theme, lifting mechanism use planetary fear to adjust speed. Easy installation for the drum thanks to compact structure and it is valid within the narrow electric hoist appearance size. The outer square box type structure changes the hoist appearance and makes the product can be applied to variety installation form, it improves the while product performance and give full consideration to provide clients with cheap and fine products.

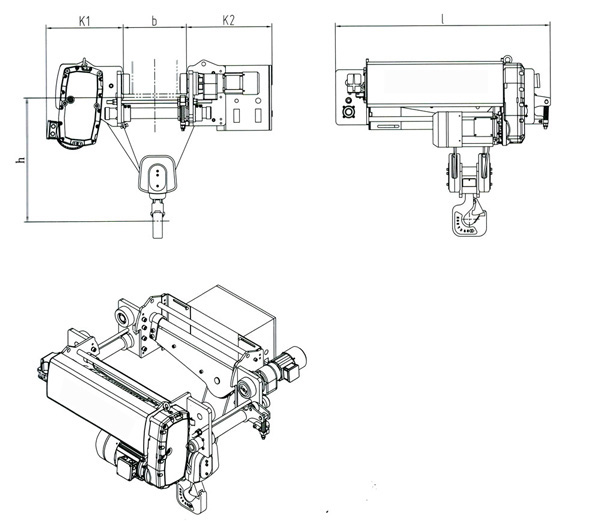

ND MODEL STEEL WIRE ROPE ELECTRIC HOIST

BRIEF INTRODUCTION:

• According to the FEM standard with advanced concept and good looking appearance to design ND electric hoists.
• Application of 13 patents reached the international advanced level.
• Has the characteristics of compact structure, low noise, energy conservation and environmental protection.

Other types:

Double Girder Trolley Electric Hoist
Double Girder Trolley Electric Hoist With Main And Auxiliary Hook

NL TYPE CHAIN ELECTRIC HOIST

For NL chain hoist, the design and manufacture conform to the FEM standard and DIN standard. It combines the 3D object modeling and the finite element analysis technique to further optimize the gear transmission, box structure and the dimension of every spare part. In this way, every single component could achieve optimal value.
NL chain hoist adopts Germany technology and all key components such as energy-efficient motors, safety brake, load protection clutch and high-strength wear-resisting chain are imported with original packaging. The super quality makes it match the similar advanced European products. For quality and performance, it always persists in satisfying the clients’ every single requirement.

Other types:

The Hang Handle Type
The Hang Hook Type

TICO can also provides some other special custom electric hoist according to your demands, so if have such needs, please contact us.
